Webhook Setup Guide

Step-by-step guide to configure webhooks.

This guide walks you through the complete process of setting up webhooks to receive real-time notifications from AgentMail. You’ll learn how to create an ngrok account, set up an inbox, configure webhooks, and write a simple webhook receiver.

Prerequisites

Before you start, make sure you have:

Python 3.8 or higher installed
An AgentMail API Key
pip package manager
Basic familiarity with Python and terminal commands

Want something simpler?

Webhooks require a public URL and tools like ngrok. If you’d rather skip that setup, WebSockets give you real-time events over a persistent connection with no external tooling. See the WebSockets quickstart.

Installation

First, install the required Python packages:

$ pip install agentmail flask ngrok

Step 1: Setting up account on Ngrok

Ngrok creates a secure tunnel from a public URL to your local development server, allowing AgentMail to send webhooks to your machine during development.

1.1 Create an ngrok account

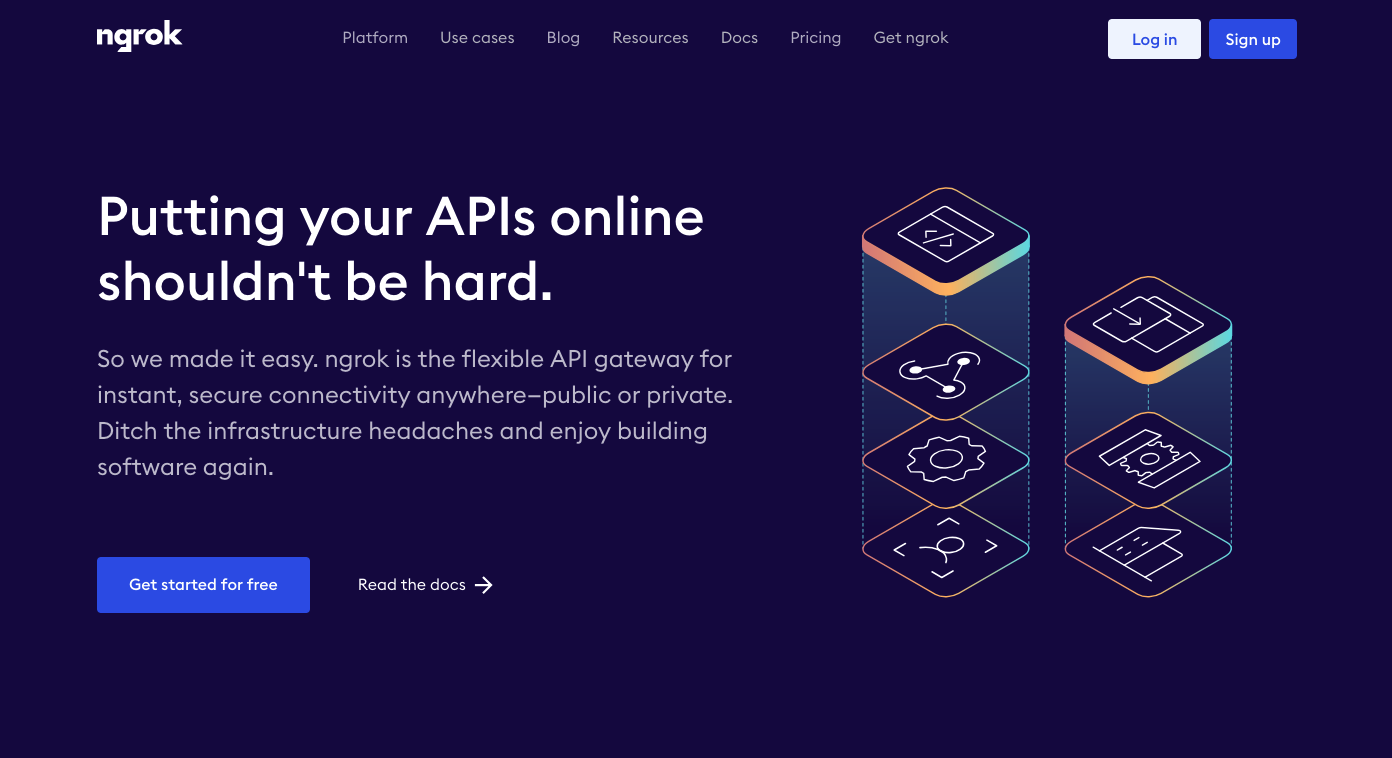

Visit ngrok.com and click “Sign up” to create a free account.

1.2 Choose your platform and install

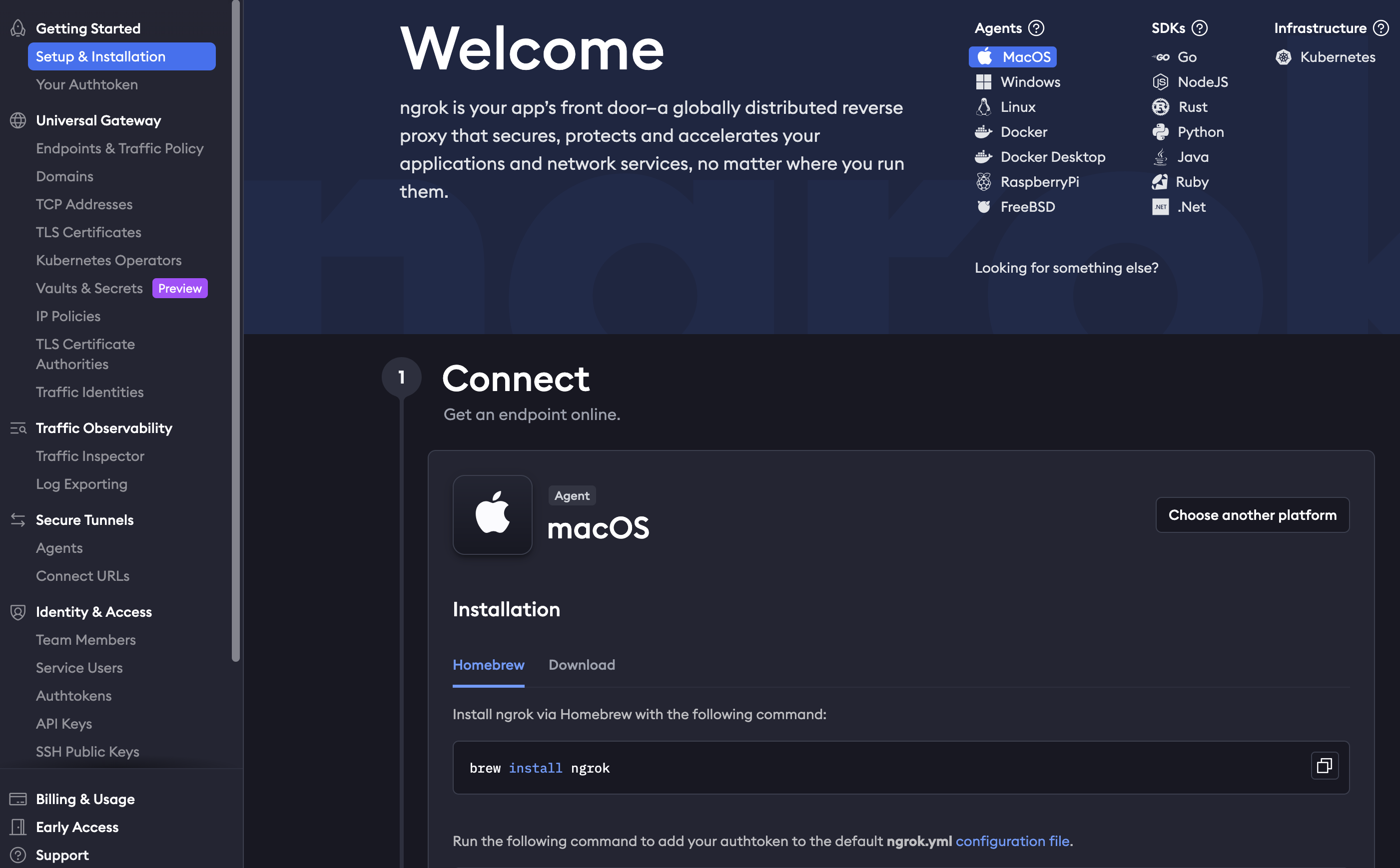

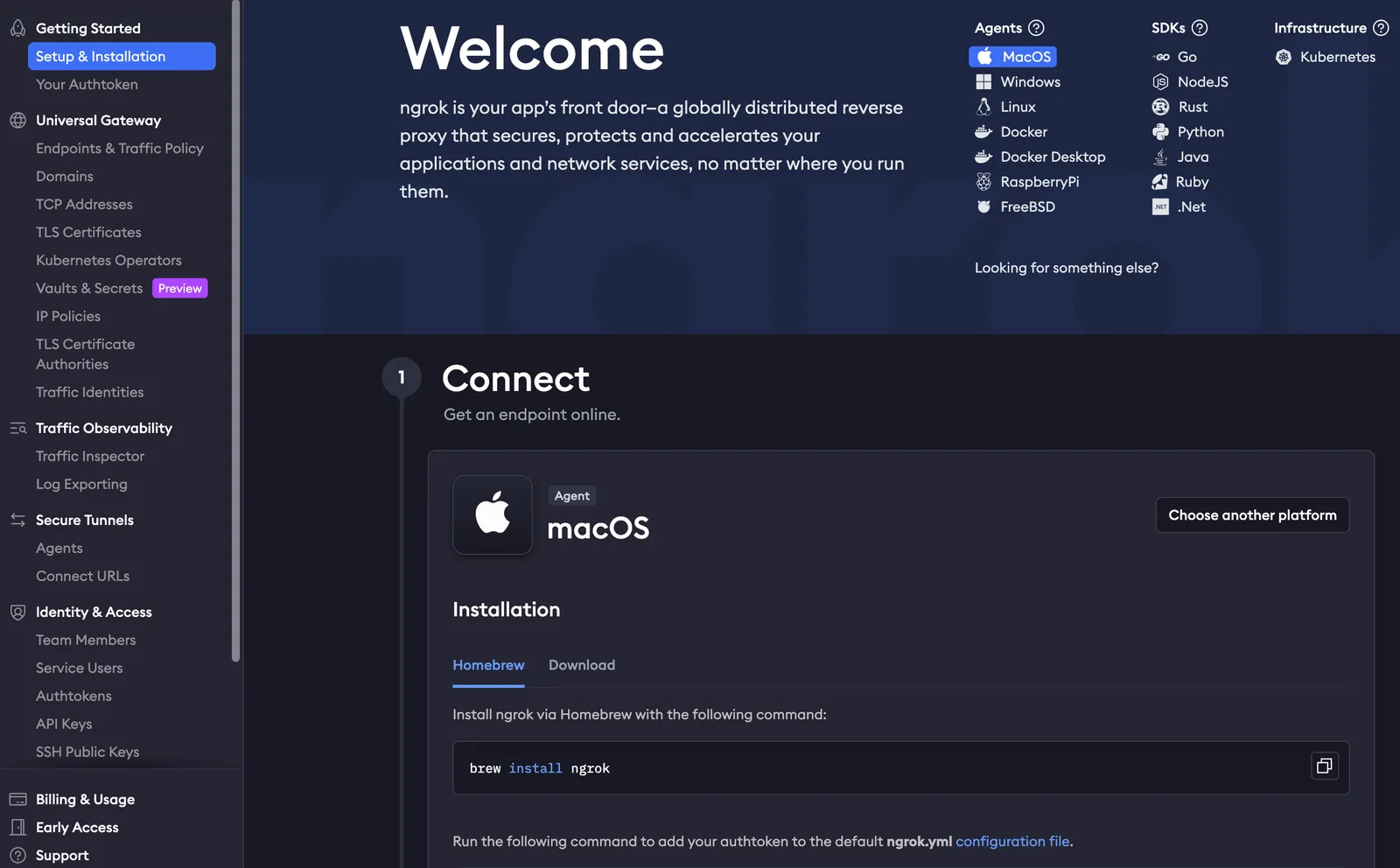

After logging in, ngrok will guide you through the setup process. Select your operating system and follow the installation instructions.

For macOS, you can install ngrok via Homebrew:

$ brew install ngrok

After installation, authenticate ngrok with your authtoken (found in your ngrok dashboard):

$ ngrok config add-authtoken YOUR_AUTHTOKEN

Step 2: Creating the inbox on AgentMail

Before you can receive webhooks, you need an inbox to receive messages. Create one using the AgentMail API:

1 from agentmail import AgentMail
2
3 client = AgentMail()
4
5 # Create an inbox for your webhook agent
6 inbox = client.inboxes.create(
7     username="webhook-demo",
8     client_id="webhook-demo-inbox"  # Ensures idempotency
9 )
10
11 print(f"Inbox created: {inbox.inbox_id}")

The client_id parameter ensures that running this code multiple times won’t create duplicate inboxes. If the inbox already exists, it will return the existing one.

Step 3: Configuring webhook on AgentMail

3.1 Start ngrok tunnel

In your terminal, start an ngrok tunnel to expose your local server (we’ll use port 3000):

$ ngrok http 3000

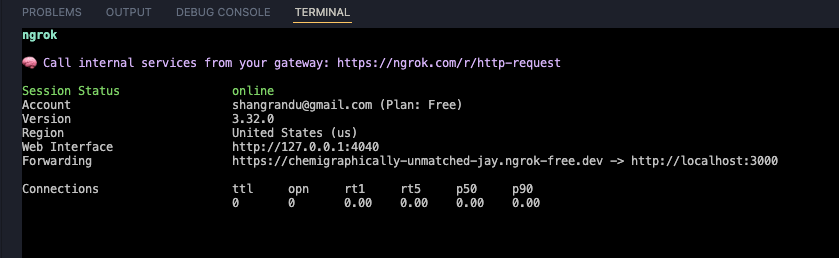

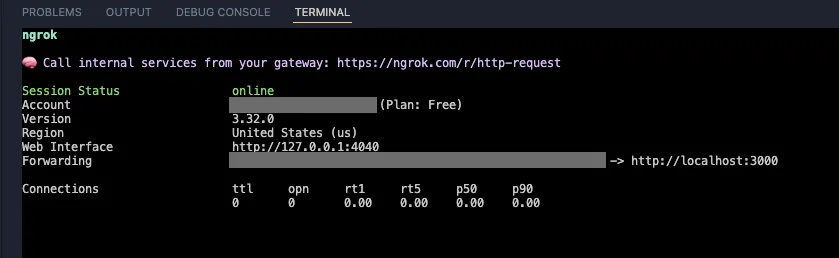

You should see output similar to this:

Copy the Forwarding URL (e.g., https://your-subdomain.ngrok-free.app). This is the public URL that AgentMail will use to send webhooks.

Use localhost for testing

When viewing your webhook receiver in the browser, use the http://127.0.0.1:3000 URL shown in the “Web Interface” line, not the ngrok URL. The ngrok URL is only for external services like AgentMail.

Why localhost? Safari is stricter than Chrome/Firefox when viewing development servers through HTTPS ngrok tunnels. Safari blocks local WebSockets and some dev-only scripts, which causes the page to show a loading spinner indefinitely due to Hot Module Replacement (HMR). This is expected development behavior and not a documentation issue. Using localhost or static builds avoids this problem.

3.2 Register webhook with AgentMail

Now register your webhook endpoint with AgentMail:

1 # Using the ngrok URL you copied
2 webhook_url = "https://your-subdomain.ngrok-free.app/webhooks"
3
4 webhook = client.webhooks.create(
5     url=webhook_url,
6     event_types=["message.received"],  # add others (e.g. message.sent) as needed
7     client_id="webhook-demo-webhook"  # Ensures idempotency
8 )
9
10 print(f"Webhook created: {webhook.webhook_id}")

Step 4: Code example for receiving webhooks

Create a file named webhook_receiver.py with the following code:

1 from flask import Flask, request, Response
2
3 app = Flask(__name__)
4
5 @app.route('/')
6 def home():
7     """Status page to verify server is running"""
8     return """
9     <html>
10     <body style="font-family: sans-serif; max-width: 800px; margin: 50px auto; padding: 20px;">
11         <h1>AgentMail Webhook Receiver</h1>
12         <div style="background: #4CAF50; color: white; padding: 10px 20px;
13                     border-radius: 4px; display: inline-block; margin: 20px 0;">
14             Server is running
15         </div>
16         <div style="background: #e3f2fd; padding: 15px; border-radius: 4px;
17                     border-left: 4px solid #2196F3;">
18             <h3>Webhook Endpoint Ready</h3>
19             <p>Your webhook endpoint is listening at: <code>POST /webhooks</code></p>
20         </div>
21         <h3>How to use:</h3>
22         <ul>
23             <li>Start ngrok: <code>ngrok http 3000</code></li>
24             <li>Register your webhook with AgentMail using the ngrok URL</li>
25             <li>Send a test email to your AgentMail inbox</li>
26             <li>Watch the console for incoming webhook events</li>
27         </ul>
28     </body>
29     </html>
30     """
31
32 @app.route('/webhooks', methods=['POST'])
33 def receive_webhook():
34     """Receives webhook events from AgentMail"""
35     payload = request.json
36
37     event_type = payload.get('event_type')
38     message = payload.get('message', {})
39
40     print(f"\nWebhook received: {event_type}")
41     print(f"From: {message.get('from_')}")
42     print(f"Subject: {message.get('subject')}\n")
43
44     return Response(status=200)
45
46 if __name__ == '__main__':
47     print("Starting webhook receiver on http://127.0.0.1:3000")
48     app.run(port=3000)

Running your webhook receiver

Make sure ngrok is running in one terminal window
In another terminal, run your webhook receiver:

$ python webhook_receiver.py

Send a test email to your AgentMail inbox
Watch the console output for incoming webhook events

Viewing the result

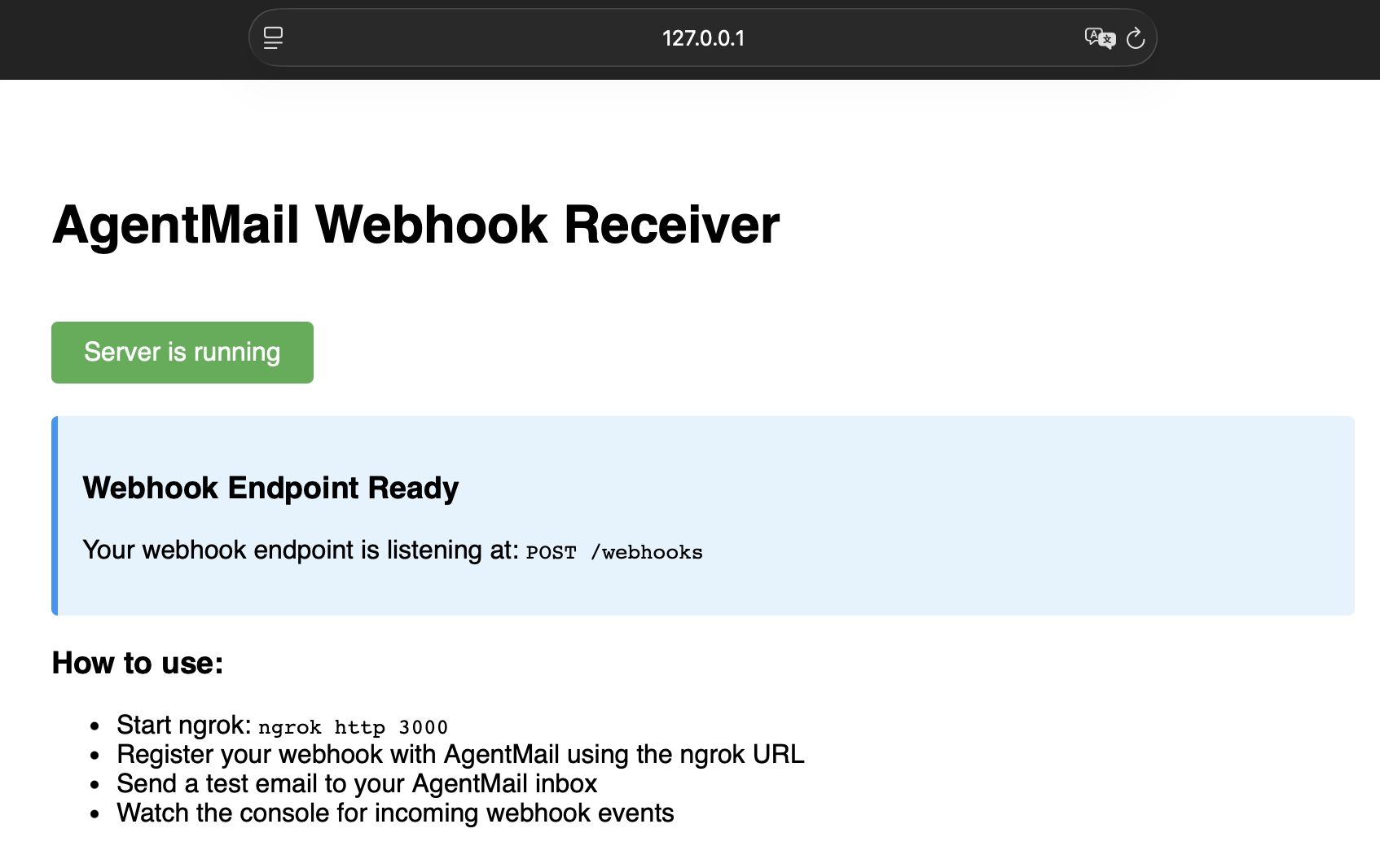

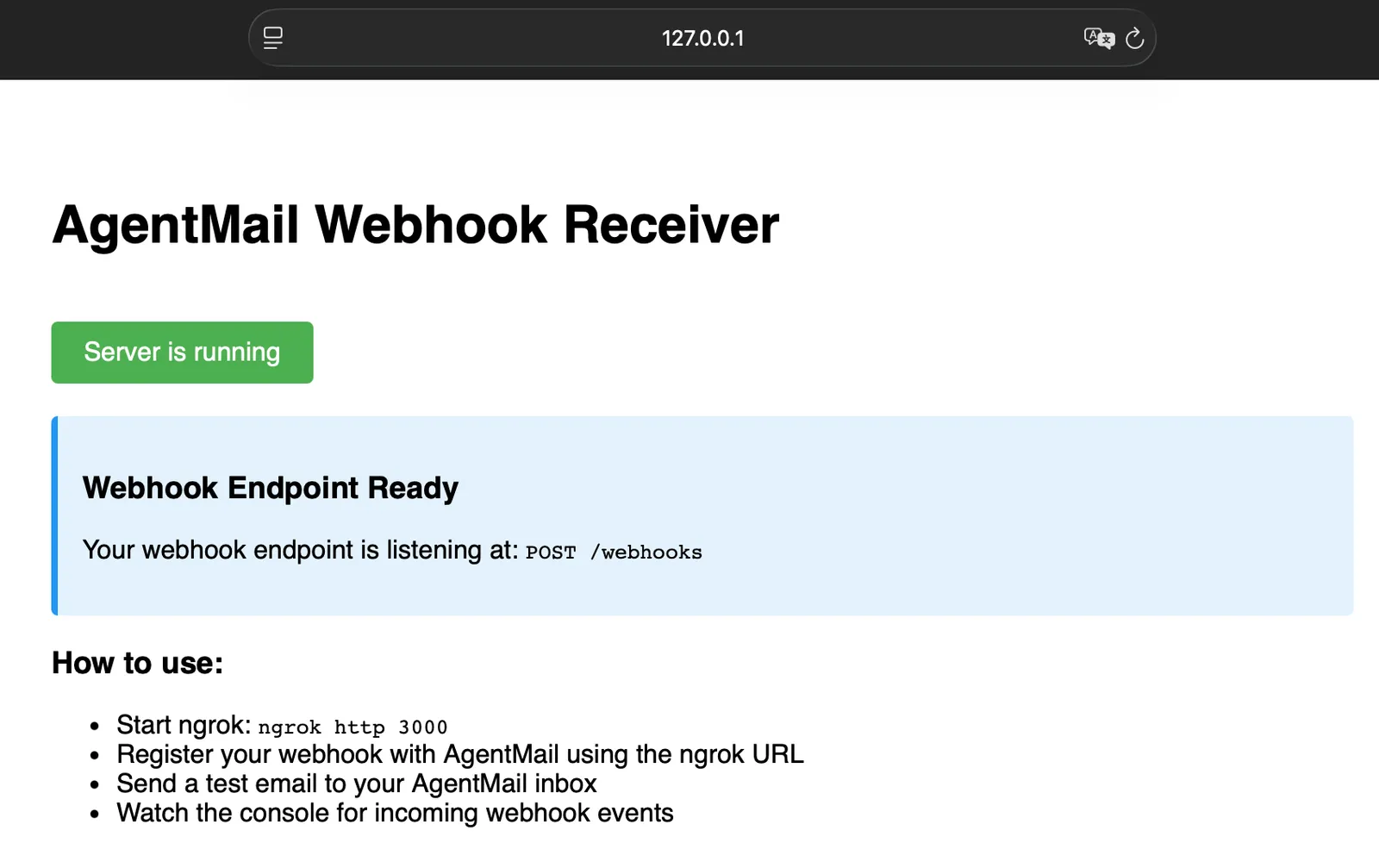

Open your browser and visit http://127.0.0.1:3000 to see the status page confirming your webhook receiver is running:

Testing Your Setup

To test your webhook setup:

Send an email to your inbox address (e.g., webhook-demo@agentmail.to)
Check your webhook receiver’s console output
You should see the webhook event details printed immediately

Next Steps

Now that your webhook is working, you can extend the receive_webhook() function to:

Automatically reply to messages
Process attachments
Route emails to different handlers based on content
Integrate with your AI agent workflows

Check out the Event-Driven Agent Example for a more advanced implementation.

Troubleshooting

Webhook not receiving events

Verify ngrok is running and the forwarding URL matches your webhook registration
Check that your Flask app is running on the correct port (3000)
Ensure your webhook URL ends with /webhooks
Look for errors in both the Flask console and ngrok web interface

Ngrok tunnel disconnects

Free ngrok accounts have 2-hour session limits. The tunnel will disconnect and you’ll need to restart ngrok and update your webhook URL with AgentMail.

Port already in use

If port 3000 is already in use, choose a different port:

Change the port in app.run(port=XXXX)
Update the ngrok command: ngrok http XXXX

Copy for Cursor / Claude

Copy one of the blocks below into Cursor or Claude for webhook setup in one shot.

1 """
2 AgentMail Webhook Setup — copy into Cursor/Claude.
3
4 Flow: 1) ngrok http 3000 → copy URL. 2) inboxes.create(client_id=...) 3) webhooks.create(url=ngrok+/webhooks, event_types=[...], client_id=...)
5 4) Flask POST /webhooks: return 200 immediately, process request.json in background.
6 Local: use http://127.0.0.1:3000 in browser, not ngrok URL.
7 """
8 from flask import Flask, request, Response
9 from agentmail import AgentMail
10
11 app = Flask(__name__)
12 client = AgentMail()
13
14 inbox = client.inboxes.create(username="webhook-demo", client_id="webhook-demo-inbox")
15 wh = client.webhooks.create(url="https://YOUR_NGROK.ngrok-free.app/webhooks", event_types=["message.received"], client_id="webhook-demo-webhook")
16
17 @app.route("/webhooks", methods=["POST"])
18 def receive():
19   payload = request.json
20   print(payload.get("event_type"), payload.get("message", {}).get("subject"))
21   return Response(status=200)

Production Considerations

For production deployments:

Use a dedicated server: Deploy your webhook receiver to a cloud service (AWS, GCP, Heroku, etc.) instead of using ngrok
Implement webhook verification: Validate incoming requests are authentically from AgentMail
Add error handling: Implement retry logic and error reporting
Use async processing: Return 200 immediately and process webhooks in background jobs
Hydrate messages via the API: Webhook payloads are capped at 1 MB. When this limit is exceeded, the text and html body fields are omitted from the payload. Use the Get Message endpoint to fetch the complete message content, including the full body and attachments. See Payload size limit for details
Monitor webhook health: Set up logging and alerting for failed webhook deliveries

Verifying Webhooks

Learn how to verify webhook signatures for secure endpoints.

Webhooks Overview

Learn more about how webhooks work and their payload structure.

Webhook Events

Explore the full list of webhook event types.
